900 x 2000mm 316 grade security door screen

MAISHI supply top quality security door screen:

- Sheets are flat (no any wave on the surface)

- Square and clear hole without burs

- Exact hole size and wire thickness

- No obvious tiger lines on the surface

- No color difference on the surface

- No sundries on the surface

- No folded wires on edges

- Tolerance of diagonal length is within +/-5mm

- Edge cutted along one wire

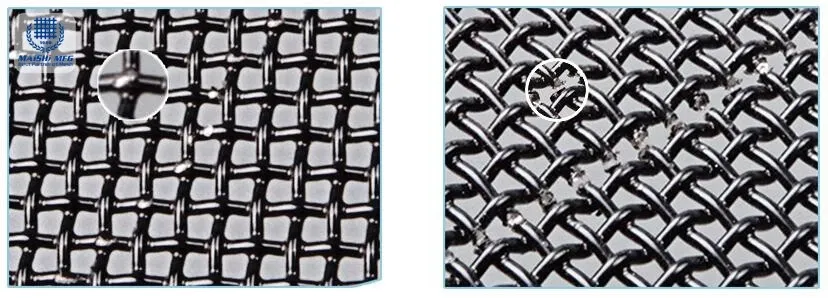

Have a close view of our security screen mesh

Specifications

Maishi make security mesh according to customers' request, but the main sizes are:

10mesh x 0.9mm -- Pass all the Australia standard test, including Knife Shear Test

11mesh x 0.9mm -- Pass all the Australia standard test, apart from Knife shear test AS5039 or AS5041

If you need other sizes, welcome to contact us.

High Tensile

316 stainless steel marine grade

black powder coated

Akzo Nobel powder

10mesh x 0.9mm

Width: 750mm, 900mm, 1000mm, 1200mm, 1500mm

Length: 2000mm, 2400mm, 3000mm, 3500mm

316 stainless steel marine grade

black powder coated

Akzo Nobel powder

11mesh x 0.8mm

Width: 750mm, 900mm, 1000mm, 1200mm, 1500mm

Length: 2000mm, 2400mm, 3000mm, 3500mm

Testing

Knife Shear Test – AS5039 - AS5041 (10mesh x 0.9mm has passed this test)

Dynamic Impact Test – AS5039 - AS5041

Anti-Jemmy Test – AS5039 - AS5041

Pull Test – AS5039 - AS5041

Cyclone Rated – AS1170.2

Fire Attenuation – AS1530.4

Swimming Pool Safety – AS1829.1.1993

3006 Hours Salt Spray Test

534 Hours UV Test

Tensile Strength

We use high tensile stainless steel wire, with more than 900Mpa (900N). The wire is more strong, and can not be easily cut off.

The function of the security screen is to protect your home from thieves and burglars, so choosing a mesh which will not be easily cut and broken is very important.

MAISHI never negotiate with the good quality, so in this way more and more customers choose to cooperate with us. Woking with us, you are rest assured of the good quality.

Quality Control

>> MAISHI control the quality from the origin. When the mesh wire arrive at our factory, we will check its chemical component, make sure the wire thickness is correct and even.

>> After the mesh is woven, we check the mesh surface, test the wire thickness and mesh hole size to make sure it is correct.

>> We clean the mesh thouroughly to make sure there is no dust, or dirty on the mesh surface, thus to make sure the powder is well attached to the mesh and no dirties attached under the powder.

>> Before packing, we check the mesh pieces one by one to make sure the meshes are qualified.

>> Then we carefully lift the mesh and separate each piece of the security mesh screen with waterproof paper. Thus to make sure the meshes will not be scratched by each other, and keep the mesh surface is smooth and beautiful.

>> >> After all is finished, we use the poly-wood case, which is not wooden, thus to make sure there is no potentional worm egg inside of the wood to harm the local environment. And we pack the case with steel belt, not nails. Thus to make sure the mesh will not be damaged by nails during transportation.
